In Japan, there is three years of English education in a junior high school.
Furthermore, although there will be at a high school, and there will be education for
two years at a university three years if a school of higher grade is entered,
as for English, Japanese is weak including me.
It is good for a meaning to lead well.


Welcome!
We are Micro Power Laboratory( Tokyo Japan )!

Micro power Laboratory Corporate guidance



If there is a question -- unreserved -- pleasing .

It cannot reply to an inquiry at all from Brazil.
It doesn't reply to the mail that the name and the where to make
contact do not describe clearly.

Cautions: Only in the case of a concrete question, answer a letter.
     The question of only a model number cannot be answered
It doesn't reply when neither the name, the company name nor the titles except the
content of the question are written.



About us:
Our company makes a mail order a subject, and sells microwave parts and longwave`s bar antenna etc..
The main customer is a company related to the government office,
research laboratories, and the educational institution and the
communication, and a amateur radio, etc.

The main business lines : Various RF and Microwave parts Sell & Buy

Various Measuring Instruments Sell & Buy

Service foundation: December, 1984

Shop address: Micro Power Laboratory in Akihabara
        Tokyo Radio Depart 1F 1-10-11 Sotokanda
        Chiyoda-Ku Tokyo 101-0021 JAPAN
        Phone / Fax +81-3-3255-8018

The inquiry has been limited to e-mail.

Over-the-counter sales are omitted.

Price information:
All prices are the U.S. Dollars or Japanies Yen..
Since the credit card is not carried, we need your help on Bank remittance.
We accept via Paypal.  https://www.paypal.com
Our Paypal´s ID is info@mpl.jp

Shipping information:
Packing,Shipping cost,etc. are not contained.
It can ship by EMS,FEDEX,UPS.

Orders / Technical Information - E Mail only!

It is the business of only a mail order.
You may also reach us via E mail to receive technical information.
E mail is picked up frequently including most evenings and weekends.

Bank Information:
Bank Name:Mizuho Bank  Bank code:0001
Branch:Nakano-Kitaguchi( No.243 )
SWIFT CODE:MHBKJPJT
Accout:0978822
Name:Micro Power Laboratory / Jun.Takahashi

Bank Address: 1-9-5 Arai Nakano-Ku
            Tokyo165-0026 Japan
            Phone +81-3-3386-1101
                        Fax      +81-3-3319-2516



Fujitsu( Eudyna ) High Power GaAs FET


You can get more information below web site.
http://c10i64ef.securesites.net/e/products_e/wireless_e/high_power_gaas_fet.html

 Fujitsu

FLL600IQ3

 2.7GHz

 Gain=10dB

P1db=48dBm

 US$250

2.7GHz / 60W

with test data

 Fujitsu

FLL800IQ3

 2.4GHz

Gain=10dB

P1db=49dBm

 US$300

2.4GHz / 80W

with test data




★ 10GHz/24GHz Gunn Doppler Module ★


Left:24GHz Right:10GHz     FM-ATV Modulator     Left:10GHz Right:24GHz
Gunn Module                              17dB Horn Antenna

10GHz ATV-SET・・・・SOLD OUT

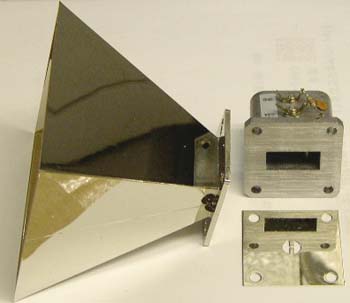

★ MP-10GOM 10GHz Gunn Doppler Module★  OUT OF STOCK
  Vop:+8V Output:10mW typ./BRJ-10(WR90)
 fo=10.525GHz

 fo=10.00 - 10.25GHz with Adjustment
 Iris sheet
 more frequency stable

★ FM-ATV Modulator ★ OUT OF STOCK
  Vop:DC 9 -12V
 Mod Freq. 6.5MHz(Maybe adjustable )
 Audio Level: -10dBm/5KΩ
 Video Input: 1V p-p/75Ω

★ Waveguide Horn Antenna ★ ◎U.S.$135.00

Nominal Gain 17dB VSWR 1.2 max.

Beam Width Degrees H-Plane/25゜at 3dB points
              E-Plane/25゜at 3dB points
 ※ W7.5 X D9.3cm  L= 7.6cm
  ※ Mates with UG-39/U



 VSWR Measured by Wiltron 6659A System at 10.0 thru 10.5GHz



24GHz ATV-SET

1,24.150GHz Gunn Doppler Module SOLD OUT

Vop:+5V Tuning:+1 - +20V
 Output:5mW typ. Wageguide:WR-42 Flange:UG-595/u

 Mechanical screw tuning and Electric varactor tuning
 21.75 - 25GHz by mechanical tune.

2,WaveGuide Horn Antenna ◎OUT OF STOCK
 Nominal Gain 17dB VSWR 1.2 max.


Beam Width Degrees H-Plane/25゜at 3dB points
              E-Plane/25゜at 3dB points
 ※ W3.6 X D4.6cm  L= 4.3cm
 ※Mates with UG-595/U



VSWR Measured by Wiltron 6659A System at 24.0 thru 24.5GHz.

★ FM-ATV Modulator ★ ◎OUT OF STOCK
 Vop:DC 9 -12V
 Mod Freq. 6.5MHz(Maybe adjustable )
 Audio Level: -10dBm/5KΩ
 Video Input: 1V p-p/75Ω



10GHz & 24GHz Gunn Diode / Mixer Diode Made by JRC


Note:A model number is unknown.  Similar JRC NJX4410
There is thousands of sales performance.
The volume of sales of Gunn diode and Mixer diode may be mixed.

10GHz Gunn Diode +8V / 10mW typ, QTY:5/JPY4500  OUT OF STOCK
24GHz Gunn Diode +5V / 5mW typ, QTY:5/JPY4500  OUT OF STOCK
10GHz Mixer Diode  QTY:5/JPY4000  OUT OF STOCK
24GHz Mixer Diode  QTY:5/JPY4000  OUT OF STOCK

JPY800 / QTY:6 - 49 unit price without shipping charge OUT OF STOCK
JPY35000 / 50pcs without shipping charge  OUT OF STOCK
JPY65000 / 100pcs without shipping charge  OUT OF STOCK
JPY90000 / 150pcs without shipping charge  OUT OF STOCK
JPY170000 / 300pcs  without shipping charge  OUT OF STOCK

-----------------------------------------------
Special offer 1
24GHz Gunn Diode JPY40000 / 100pcs  without shipping charge  OUT OF STOCK
-----------------------------------------------

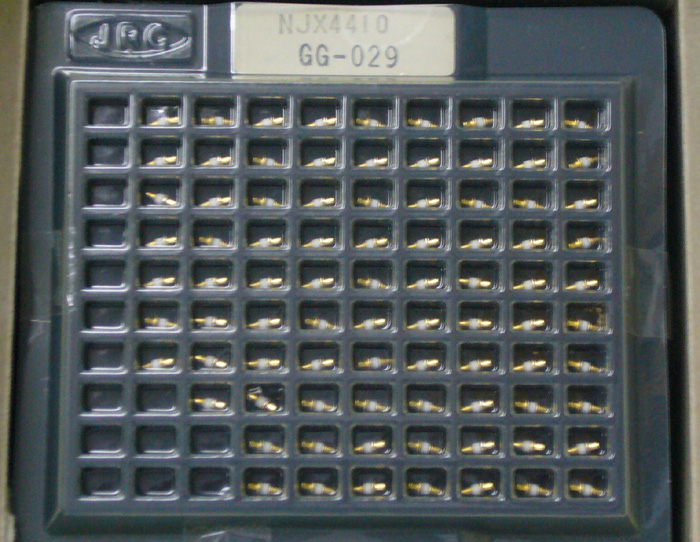

Special offer 2  JRC NJX-4410 10.5GHz CW Gunn Diode

JPY1200 / 1- 5pcs / unit price without shipping charge
JPY1100 / QTY:6 - 49 / unit price without shipping charge
JPY45000 / 50pcs without shipping charge
JPY85000 / 100pcs without shipping charge
JPY800 / 101 - 500pcs  without shipping charge
Note:Please refer to specifications.  JRC_NJX4410.pdf

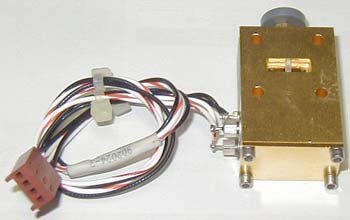

★ 22GHz High Power Gunn Oscillator with Varactor Diode ★

A:Gunn Diode Voltage:6.8V / 0.8A $550.00
 Varactor Diode Voltage:+1 - +13V( 50 -100MHz Adjustable )
 Output Power:
90mW / 22GHz  80mW / 23GHz  50mW / 24GHz

B:Gunn Diode Voltage:5.8V / 0.8A $450.00
 Varactor Diode Voltage:+1 - +13V( 50 -100MHz Adjustable )
 Output Power:
60mW / 22GHz  25mW / 24GHz
※ without mixer diode



★ Power Amplifier ★
1,Fujitsu CGB5964P2-04 5.7-6.4GHz Out:0.25W Gain:20dB
 SMAfemale New
U.S.$800.00

2,5.7GHz High Power Amp. 1mW ・ Out:6-8W  DC12V
SOLD OUT
 Final Stage:Fujitsu FLM5964-6D  Made by Fujitsu/Japan.

3,800MHz 40W
U.S.$300.00
 10mW → μPG100 → μPG101 → FLL0901 → FLL190 X2 → 40W
 Power Supply:+15V 5A / -12V0.1A 74 X 141 X 15mm SMA Connecter

4,800MHz 150-200W High Power Amp.
U.S.$1090.00
 10mW→ μPG100→μPG101→ FLL0901→ FLL190X2→ FLL490 X4→150-200W
 Power Supply:+15V 20A / -12V0.1A  180 X 180 X 15mm SMA Connecter

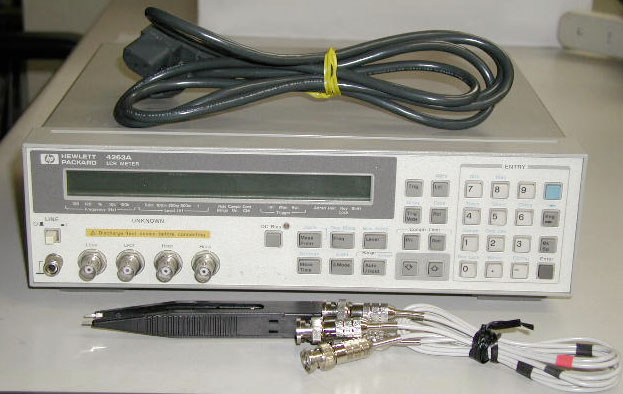

HP 4263A 100Hz / 120Hz / 1KHz /10KHz / 100KHz LCR METER
With test fixture for SMD chips
U.S.$1800.00





HP / AGILENT 11975A 2 - 8GHz Amplifier
Good condition! Include Operation and service manual
US$1500.00



3,Wanted or Trade

Wanted!
HP/Agilent 41900A Test Fixture QTY:1
HP/Agilent Impidance probe for HP E4196A QTY:1
HP/Agilent 70310A Reference Oscillator QTY:1
HP/Agilent 70900B Local Oscillator QTY:1( Let us know serial number) QTY:1

HP/Agilent 70861A Firmware Upgrade Kit for 70900B  QTY:1



Sell! HP/Agilent 70810A  1200 - 1600nm / Lightwave receiver module US$4000
Note:We are ready to trade it for a 70310A plus US$1500,or just sell it for US$4000.

Ferrite rod We are looking for Big-sized rod.
OD:above 1inch( 25.4mm ) Length:above 10inchs( 25.4cm ) Frequency Range:100KHz - 30MHz

If you have any informations,please let us know!



WANTED of crystal resonator
It looks for the quartz resonator that entered the glass tube.
1000Hz or less hopes for 440Hz and 880Hz.
The manufacturer that is manufacturing it now wants to learn.
Please let us know your infromations to info@mpl.jp
